  Impressive lifts during the reconstruction of the rotary kiln at the cement plant in Allmendingen

Industry
Stone/Earth/Cement
Services
Construction management & supervision, Mechanical assembly, Project Management
Country
Allmendingen, Germany DE
Status
completed
Once again, our customer IKN GmbH relied on the proven SGS quality and assigned us to reconstruct the kiln inlet at SCHWENK Zement in Allmendingen. Our #SGSteam replaces individual segments of the 96 m long rotary kiln including the roller bearings during the annual winter shutdown. The heavy loads of the individual parts were particularly challenging.
30
Employees

5 1/2
Months of construction time

361
Tonnes of mechanical equipment

15
Tonnes of steel structure


Gallery

Skip slider

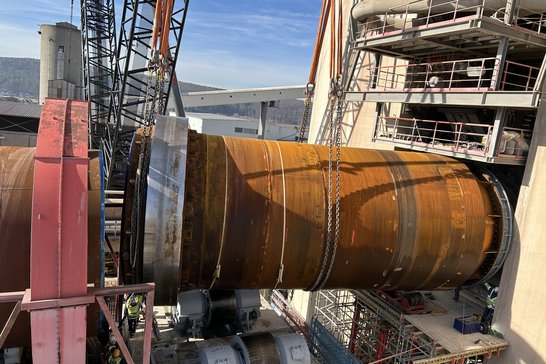

[Translate to Englisch:] Kranhub des Ofenschusses mit 247t ©SCHWENK
[Translate to Englisch:] Kranhub des Ofenschusses mit 247t ©SCHWENK
Jump to slider start

Our scope of services

With a turnaround time of 4 months, our #SGS team replaced individual sections of the 96 m long rotary kiln. SGS Industrial Services GmbH was responsible for the mechanical erection of:

  • the kiln inlet including a new roller station
  • the infeed chamber
  • the steel construction inspections

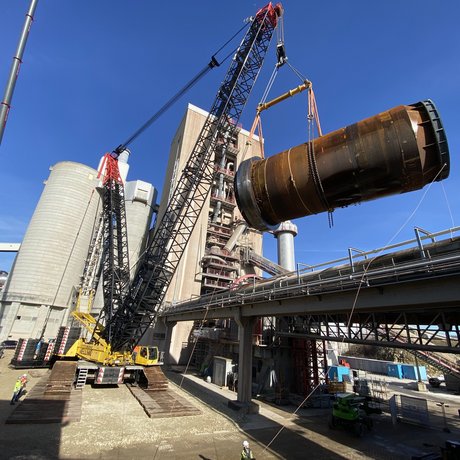

[Translate to Englisch:] Kranhub des Ofenschusses 247 Tonnen ©SCHWENK Zement

Successful handling of heavy loads

The weight of the individual parts was particularly challenging. The heaviest lift, with a total weight of 247 tons, comprised the pre-assembled kiln section with race. Within a span of three hours and utilizing an 600 tons crawler crane, the #SGSteam successfully carried out the large lift. Due to various interfering edges, the kiln was only able to be turned sideways. These challenges were overcome smoothly and professionally thank to the excellent collaboration within the #SGSteam, as well as with customers and partners.

Project data

Commissioner
IKN GmbH
Customer
SCHWENK Zement GmbH & Co. KG
Industry
Stone/Earth/Cement
Construction location
Allmendingen, Germany
Contruction period
5 1/2 months
Contributors
30
Specialties
The weight of the individual parts presented a particular challenge. The heaviest lift had a total weight of 247 tons. The limited time also required careful planning and coordination.
Scope of delivery & service

About our customer IKN GmbH

IKN (Ingenieurbüro-Kühlerbau-Neustadt) GmbH has specialized in the design and manufacturing of clinker coolers and pyro lines for cement production. The company headquartered in Neustadt, Germany, employ 170 people worldwide. More about at www.ikn.eu.
